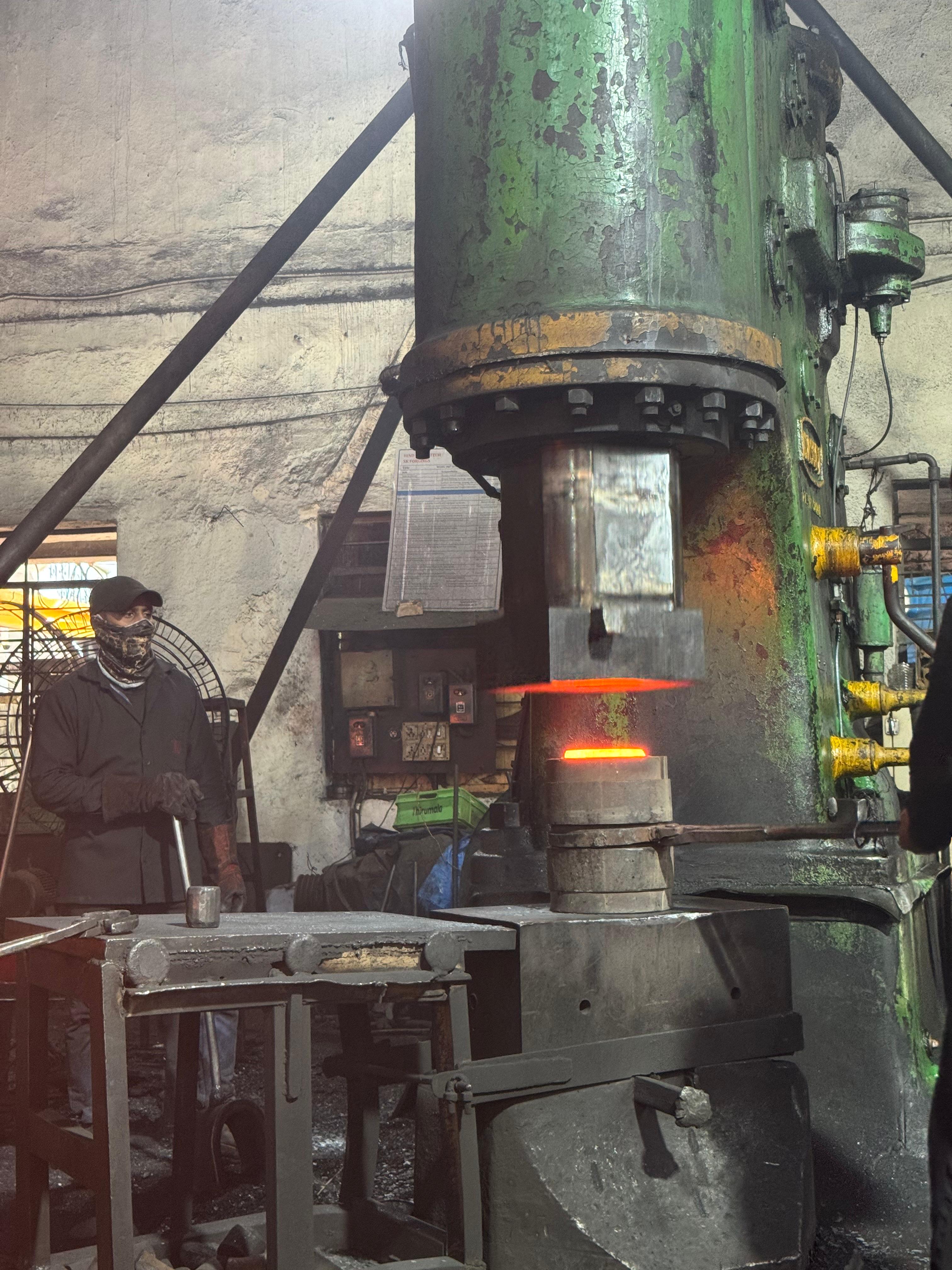

We shape metal between flat or simple contoured dies on open die hammers ranging from 750 kg to 1.5 tonne capacity. This process is ideal for large, custom and oversized components, enhancing internal grain structure for superior strength and toughness with flexible deformation paths for almost any size or shape.
Typical Components
Large shafts & spindles
Discs & blanks
Mandrels & cylinders
Bars, billets & ingots
Turbine shafts, aerospace & motor parts
Machine Specifications
750 kg Ram Hammer Typical Working Capacity
Parameter
Typical Range
Max round bar stock
~Ø 280–300 mm
Max square / billet stock
~250–270 mm × 250–270 mm
Blow energy
~19–22 kJ (2,000–2,250 mkg)
Practical starting billet weight
Generally up to ~150–250 kg per heat/piece
Max single forged component (finished)
Roughly 80–150 kg, depending on shape complexity
1500 kg (1.5 Ton) Ram Hammer Open Die / Free Forging Hammer
